The Banana Pro is a dual core sbc which uses the Arm A7 Allwinner A20 1Ghz cpu and has 1gb of RAM.

Connectivity options are 150Mbps b/g/n Wifi, 10/100/1000 Ethernet Bluetooth, DSI display connector, CSI Camera connector, two full sized USB2.0 ports, a micro USB power connector or a micro USB OTG connector. Both can be used to power the board but the OTG connector doesn’t appear to pass power to the SATA power connector. There is also a dedicated UART connector, reset Button, power button and UBoot button.

Storage is either via the micro SD slot or the single SATA 2.0 port. There is also a 5v connector which can be used to power a 2.5 HDD with the correct cable.

For audio and video there is a full sized HDMI connector, a 3.5mm TRRS plug which does composite video and audio. There is also an onboard mic and an IR reciever.

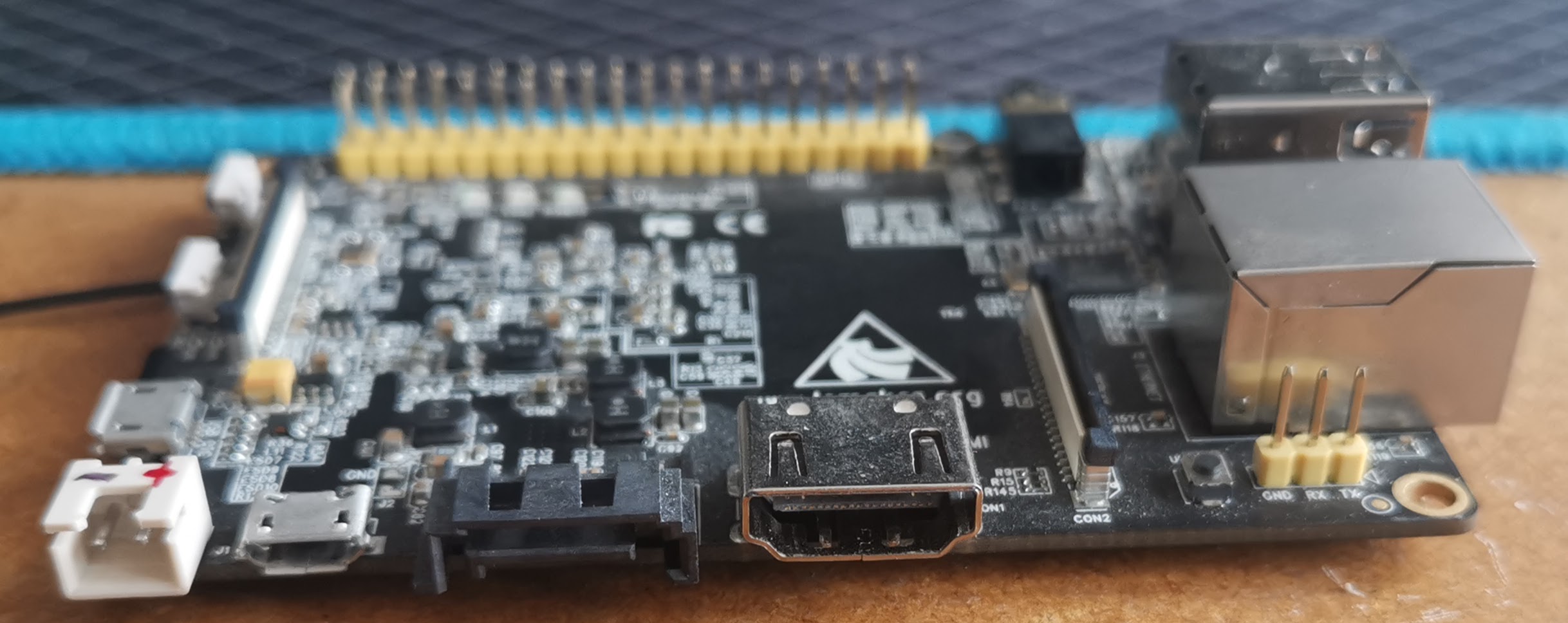

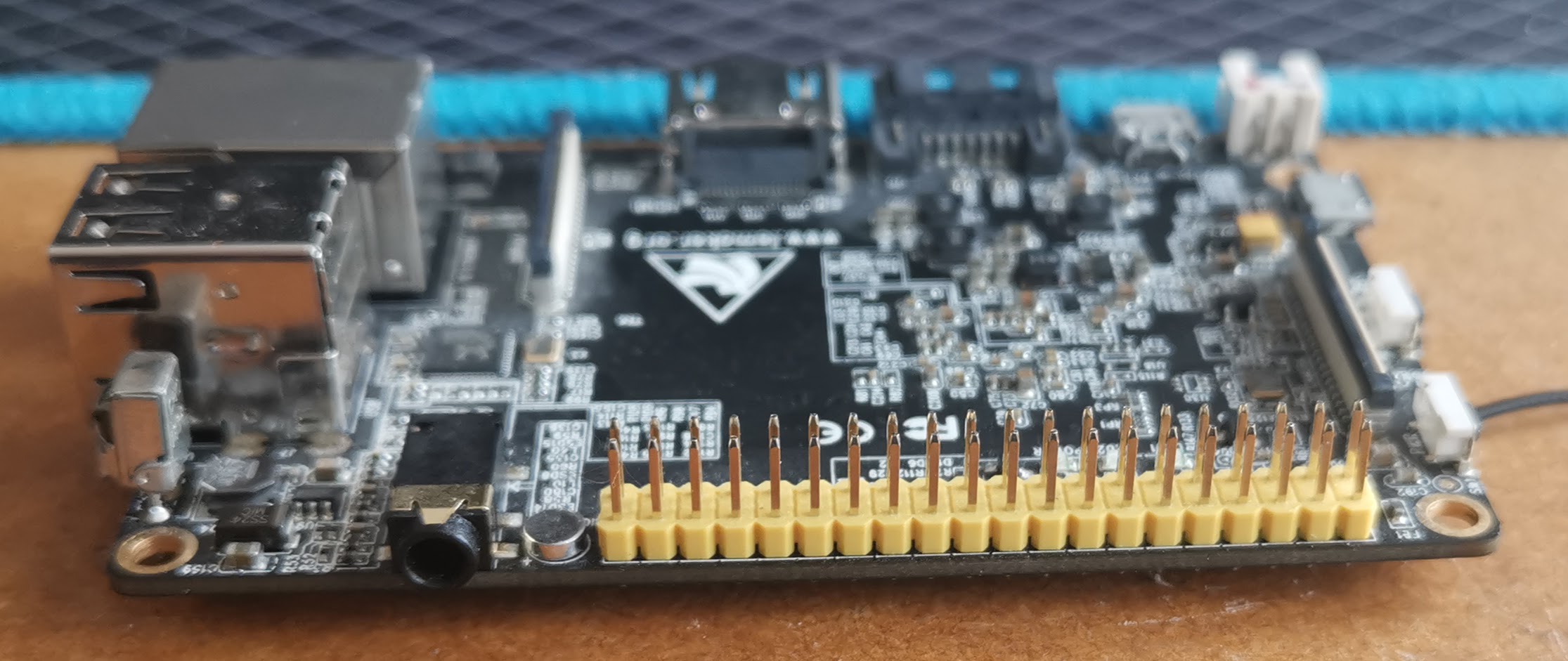

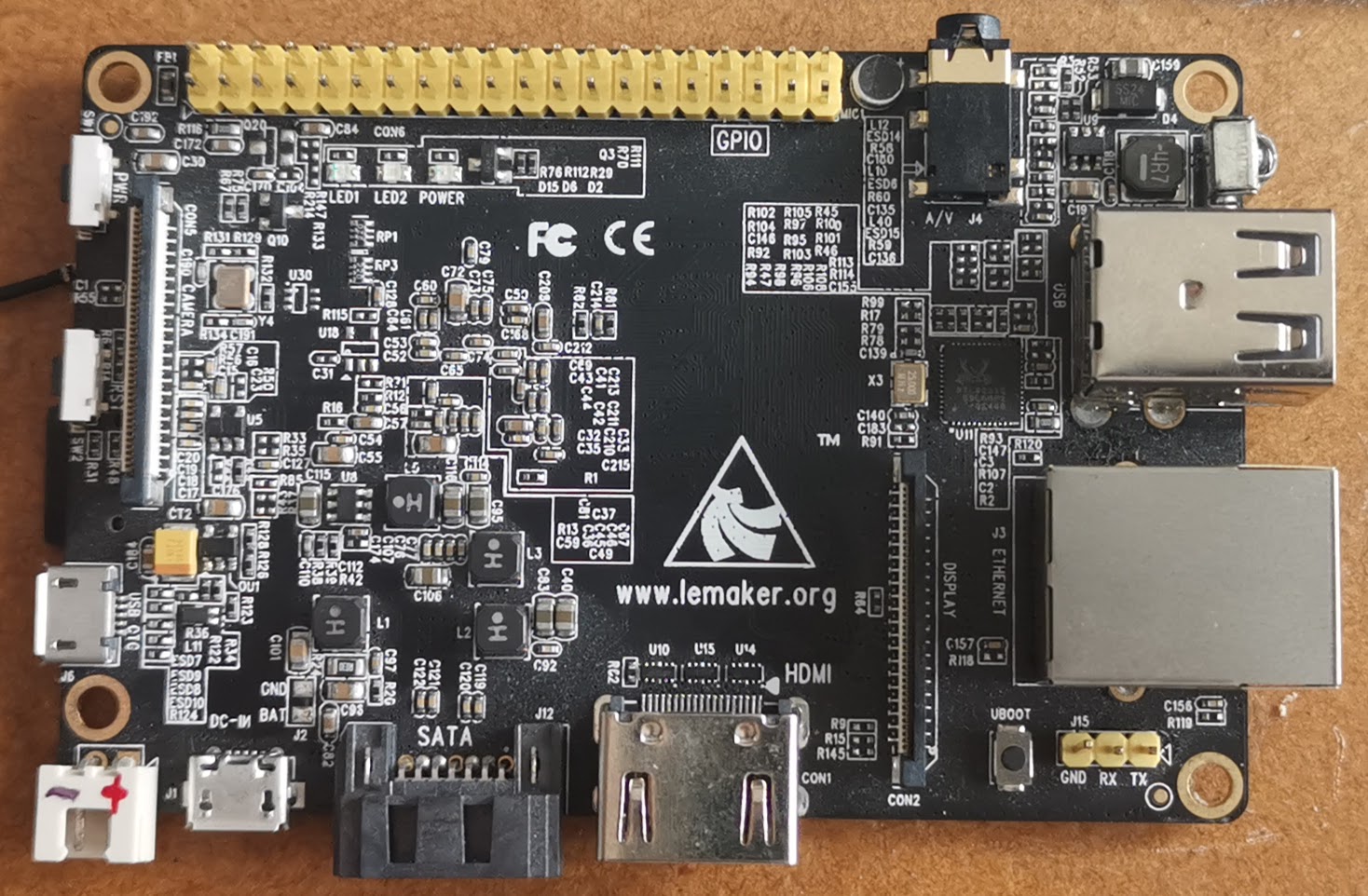

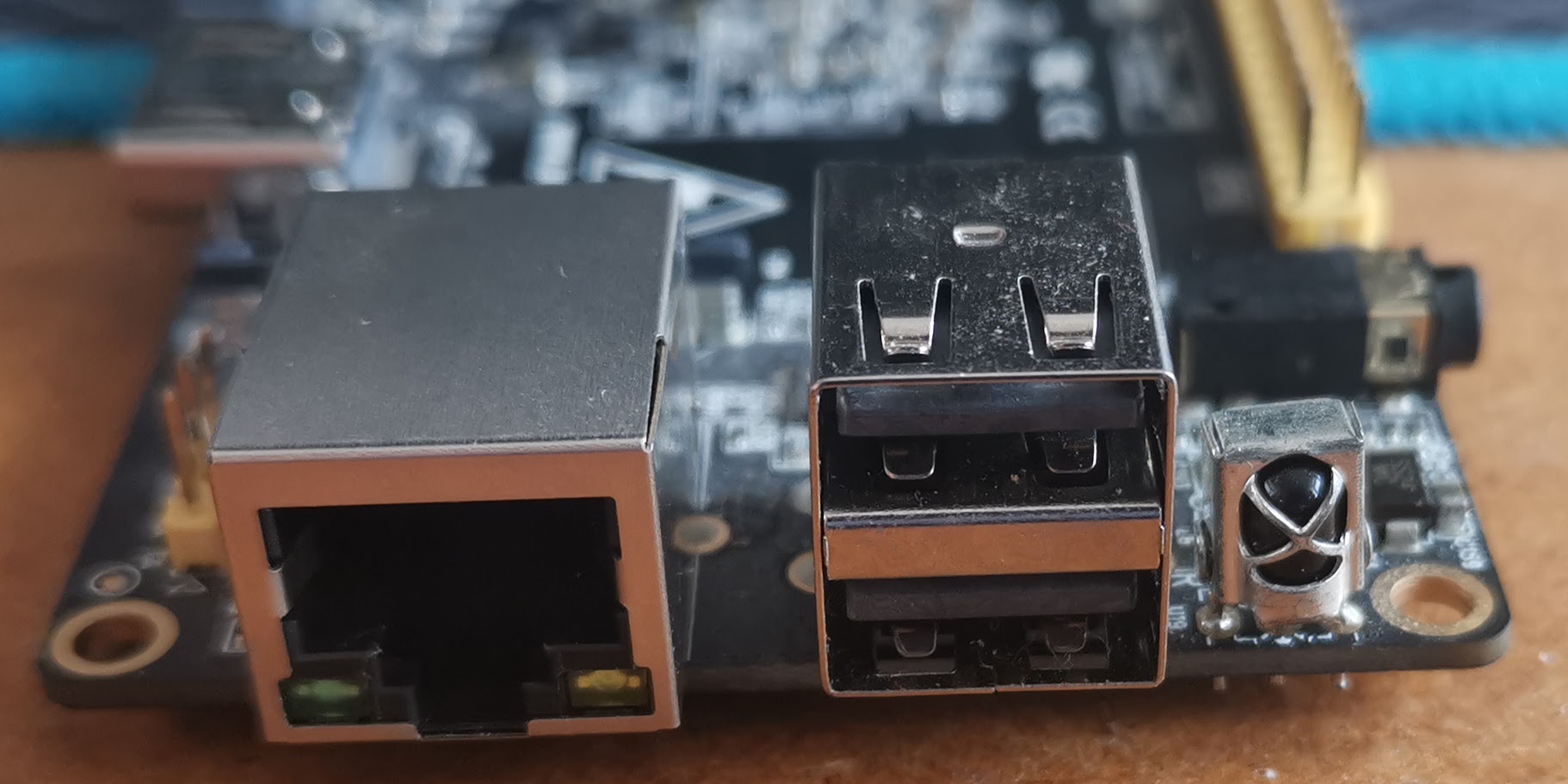

top bottom ethernet & IR sata & HDMI GPIO OTG & Buttons
